13.4.1 静态路由实验一

项目拓扑：

需求：全网互通

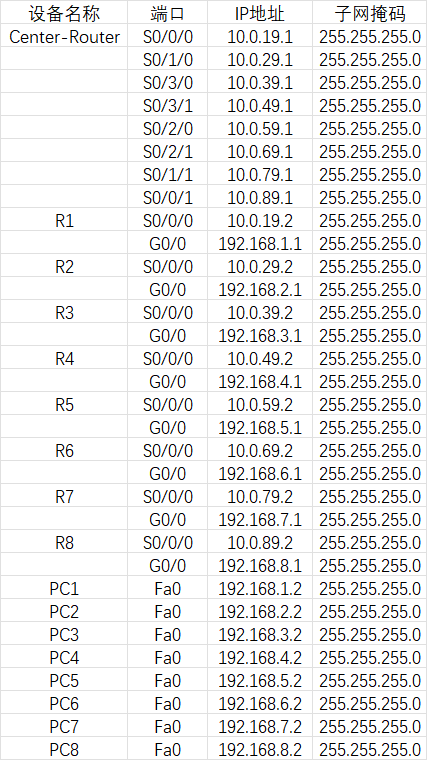

网络规划：

项目实现：

配置：

Center-Router:

EN

CONF T

INT S0/0/0

IP ADD 10.0.19.1 255.255.255.0

NO SH

EXI

INT S0/1/0

IP ADD 10.0.29.1 255.255.255.0

NO SH

EXI

INT S0/3/0

IP ADD 10.0.39.1 255.255.255.0

NO SH

EXI

INT S0/3/1

IP ADD 10.0.49.1 255.255.255.0

NO SH

EXI

INT S0/2/0

IP ADD 10.0.59.1 255.255.255.0

NO SH

EXI

INT S0/2/1

IP ADD 10.0.69.1 255.255.255.0

NO SH

EXI

INT S0/1/1

IP ADD 10.0.79.1 255.255.255.0

NO SH

EXI

INT S0/0/1

IP ADD 10.0.89.1 255.255.255.0

NO SH

EXI

IP ROUTE 192.168.1.0 255.255.255.0 10.0.19.2

IP ROUTE 192.168.2.0 255.255.255.0 10.0.29.2

IP ROUTE 192.168.3.0 255.255.255.0 10.0.39.2

IP ROUTE 192.168.4.0 255.255.255.0 10.0.49.2

IP ROUTE 192.168.5.0 255.255.255.0 10.0.59.2

IP ROUTE 192.168.6.0 255.255.255.0 10.0.69.2

IP ROUTE 192.168.7.0 255.255.255.0 10.0.79.2

IP ROUTE 192.168.8.0 255.255.255.0 10.0.89.2

R1:

EN

CONF T

INT S0/0/0

IP ADD 10.0.19.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.1.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R2:

EN

CONF T

INT S0/0/0

IP ADD 10.0.29.2 255.255.255.0

NO SH

EXI

INT G0/0

IP ADD 192.168.2.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R3:

EN

CONF T

INT S0/0/0

IP ADD 10.0.39.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.3.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R4:

EN

CONF T

INT S0/0/0

IP ADD 10.0.49.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.4.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R5:

EN

CONF T

INT S0/0/0

IP ADD 10.0.59.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.5.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R6:

EN

CONF T

INT S0/0/0

IP ADD 10.0.69.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.6.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R7:

EN

CONF T

INT S0/0/0

IP ADD 10.0.79.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.7.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R8:

EN

CONF T

INT S0/0/0

IP ADD 10.0.89.2 255.255.255.0

NO SH

EXI

INT g0/0

IP ADD 192.168.8.1 255.255.255.0

NO SH

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

PC-Client静态IPv4地址需手动配置

验证连通性：

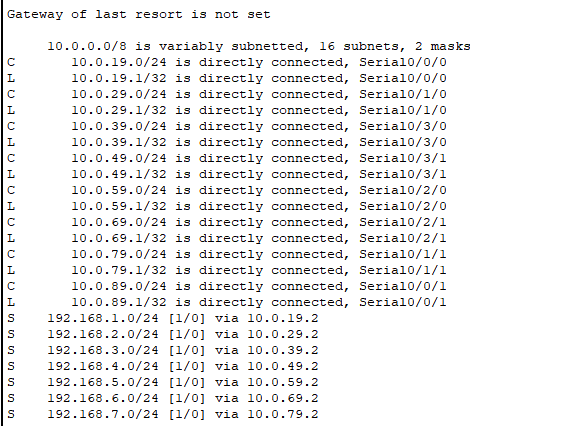

查看路由表：
