13.4.2 汇聚路由实验一

项目拓扑：

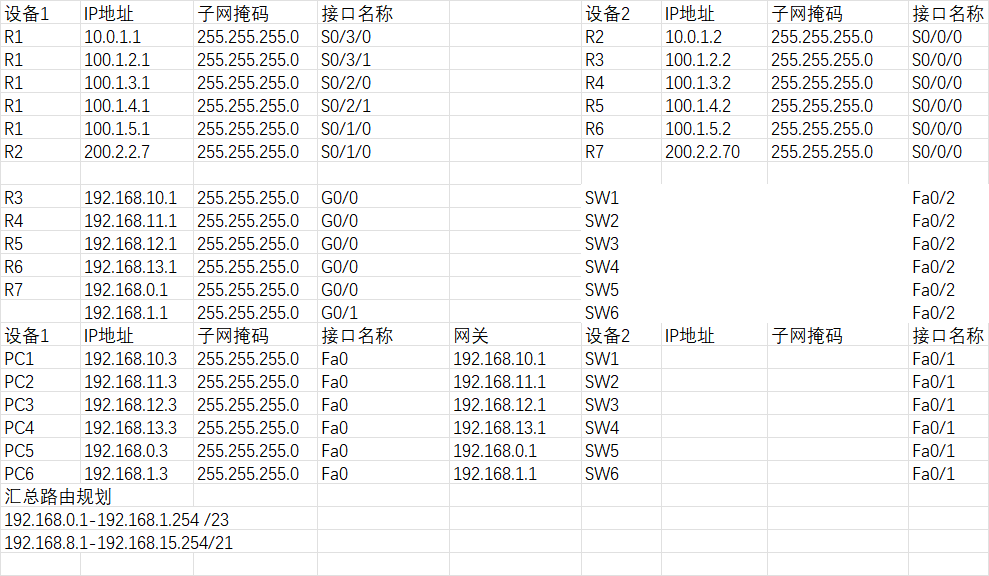

项目IP地址规划：

项目实施配置：

R1：

EN

CONF T

HOSTNAME R1

INT S0/3/0

IP ADD 10.0.1.1 255.255.255.0

NO SH

EXI

INT S0/3/1

NO SH

IP ADD 100.1.2.1 255.255.255.0

EXI

INT S0/2/0

NO SH

IP ADD 100.1.3.1 255.255.255.0

EXI

INT S0/2/1

NO SH

IP ADD 100.1.4.1255.255.255.0

INT S0/1/0

NO SH

IP ADD 100.1.5.1 255.255.255.0

EXI

IP ROUTE 192.168.0.0 255.255.254.0 S0/3/0

ip route 192.168.10.0 255.255.255.0 100.1.2.2

ip route 192.168.11.0 255.255.255.0 100.1.3.2

ip route 192.168.12.0 255.255.255.0 100.1.4.2

ip route 192.168.13.0 255.255.255.0 100.1.5.2

R2:

EN

CONF T

HOSTNAME R2

INT S0/1/0

NO SH

IP ADD 200.2.2.7 255.255.255.0

EXI

INT S0/0/0

NO SH

IP ADD 10.0.1.2 255.255.255.0

EXI

IP ROUTE 192.168.8.0 255.255.248.0 S0/0/0

IP ROUTE 192.168.0.0 255.255.254.0 S0/1/0

R3:

EN

CONF T

HOSTNAME R3

INT G0/0

NO SH

IP ADD 192.168.10.1 255.255.255.0

EXI

INT S0/0/0

NO SH

IP ADD 100.1.2.2 255.255.255.0

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R4:

EN

CONF T

HOSTNAME R4

INT G0/0

NO SH

IP ADD 192.168.11.1 255.255.255.0

EXI

INT S0/0/0

NO SH

IP ADD 100.1.3.2 255.255.255.0

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R5:

EN

CONF T

HOSTNAME R5

INT G0/0

NO SH

IP ADD 192.168.12.1 255.255.255.0

EXI

INT S0/0/0

NO SH

IP ADD 100.1.4.2 255.255.255.0

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R6:

EN

CONF T

HOSTNAME R6

INT G0/0

NO SH

IP ADD 192.168.13.1 255.255.255.0

EXI

INT S0/0/0

NO SH

IP ADD 100.1.5.2 255.255.255.0

EXI

IP ROUTE 0.0.0.0 0.0.0.0 S0/0/0

R7:

EN

CONF T

HOSTNAME R7

INT S0/0/0

NO SH

IP ADD 200.2.2.70 255.255.255.0

EXI

INT G0/0

IP ADD 192.168.0.1 255.255.255.0

NO SH

INT G0/1

NO SH

IP ADD 192.168.1.1 255.255.255.0

EXI

IP ROUTE 192.168.8.0 255.255.248.0 S0/0/0
