13.8 OSPF单区域实验
项目拓扑：

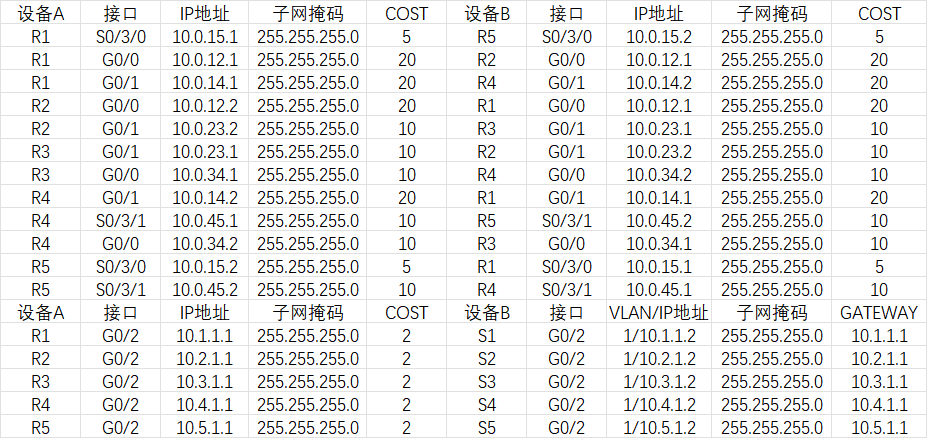

项目地址规划：
项目实施：
配置：
R1:
en
conf t
hostname R1
int s0/3/0
ip add 10.0.15.1 255.255.255.0
no sh
ip ospf cost 5
exi
int g0/2
ip add 10.1.1.1 255.255.255.0
no sh
ip ospf cost 2
exi
int g0/1
no sh
ip add 10.0.14.1 255.255.255.0
ip ospf cost 20
exi
int g0/0
no sh
ip add 10.0.12.1 255.255.255.0
ip ospf cost 20
exi
route ospf 1
network 10.0.12.0 0.0.0.255 a 0
network 10.0.14.0 0.0.0.255 a 0
network 10.1.1.0 0.0.0.255 a 0
network 10.0.15.0 0.0.0.255 a 0
R2:
en
conf t
hostname R2
int g0/2
ip add 10.2.1.1 255.255.255.0
ip ospf cost 2
no sh
exi
int g0/1
no sh
ip add 10.0.23.2 255.255.255.0
ip ospf cost 10
exi
int g0/0
no sh
ip add 10.0.12.2 255.255.255.0
ip ospf cost 20
exi
route ospf 1
network 10.0.12.0 0.0.0.255 a 0
network 10.0.23.0 0.0.0.255 a 0
network 10.2.1.0 0.0.0.255 a 0
R3:
en
conf t
hostname R3
int g0/2
ip add 10.3.1.1 255.255.255.0
ip ospf cost 2
no sh
exi
int g0/1
no sh
ip add 10.0.23.1 255.255.255.0
ip ospf cost 10
exi
int g0/0
no sh
ip add 10.0.34.1 255.255.255.0
ip ospf cost 10
exi
route ospf 1
network 10.0.34.0 0.0.0.255 a 0
network 10.0.23.0 0.0.0.255 a 0
network 10.3.1.0 0.0.0.255 a 0
R4:
en
conf t
hostname R4
int g0/2
ip add 10.4.1.1 255.255.255.0
ip ospf cost 2
no sh
exi
int s0/3/1
no sh
ip add 10.0.45.1 255.255.255.0
ip ospf cost 10
exi
int g0/1
no sh
ip add 10.0.14.2 255.255.255.0
ip ospf cost 20
exi
int g0/0
no sh
ip add 10.0.34.2 255.255.255.0
ip ospf cost 10
exi
route ospf 1
network 10.0.34.0 0.0.0.255 a 0
network 10.0.14.0 0.0.0.255 a 0
network 10.4.1.0 0.0.0.255 a 0
network 10.0.45.0 0.0.0.255 a 0
R5:
en
conf t
hostname R5
int g0/2
ip add 10.5.1.1 255.255.255.0
ip ospf cost 2
no sh
exi
int s0/3/1
no sh
ip add 10.0.45.2 255.255.255.0
ip ospf cost 10
exi
int s0/3/0
no sh
ip add 10.0.15.2 255.255.255.0
ip ospf cost 5
exi
route ospf 1
network 10.0.45.0 0.0.0.255 a 0
network 10.0.15.0 0.0.0.255 a 0
network 10.5.1.0 0.0.0.255 a 0
S1:
en
conf t
hostname S1
int vlan 1
ip add 10.1.1.2 255.255.255.0
no sh
exi
ip default 10.1.1.1
S2:
en
conf t
hostname S2
int vlan 1
ip add 10.2.1.2 255.255.255.0
no sh
exi
ip default 10.2.1.1
S3:
en
conf t
hostname S3
int vlan 1
ip add 10.3.1.2 255.255.255.0
no sh
exi
ip default 10.3.1.1
S4:
en
conf t
hostname S4
int vlan 1
ip add 10.4.1.2 255.255.255.0
no sh
exi
ip default 10.4.1.1
S5:
en
conf t
hostname S5
int vlan 1
ip add 10.5.1.2 255.255.255.0
no sh
exi
ip default 10.5.1.1
截图：

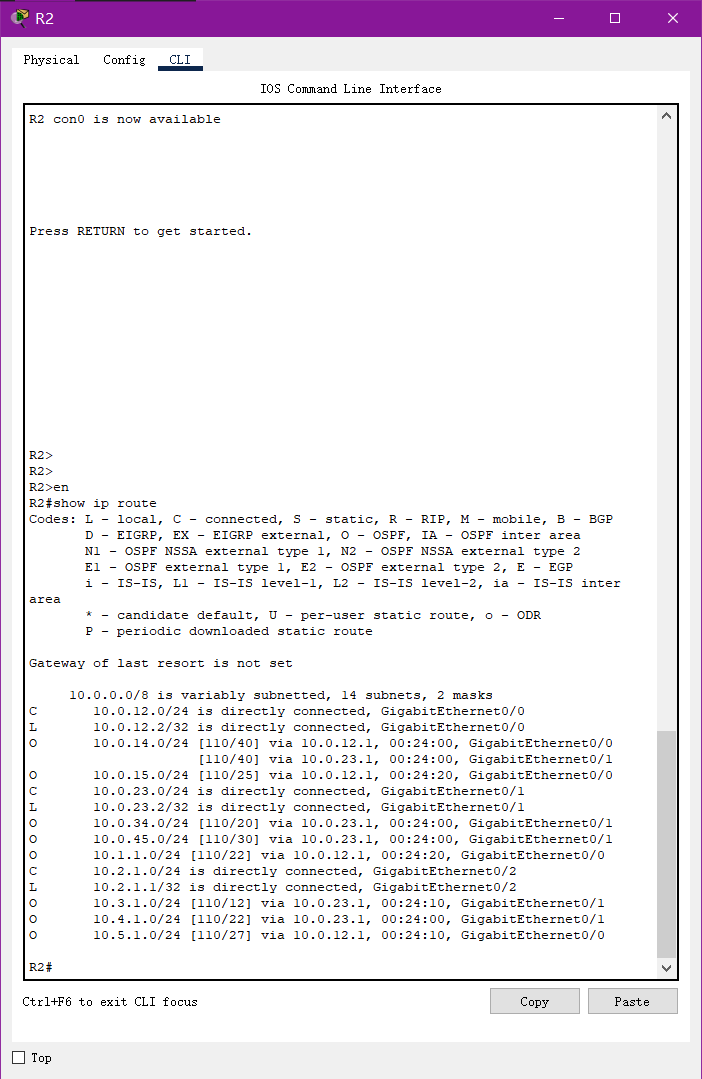

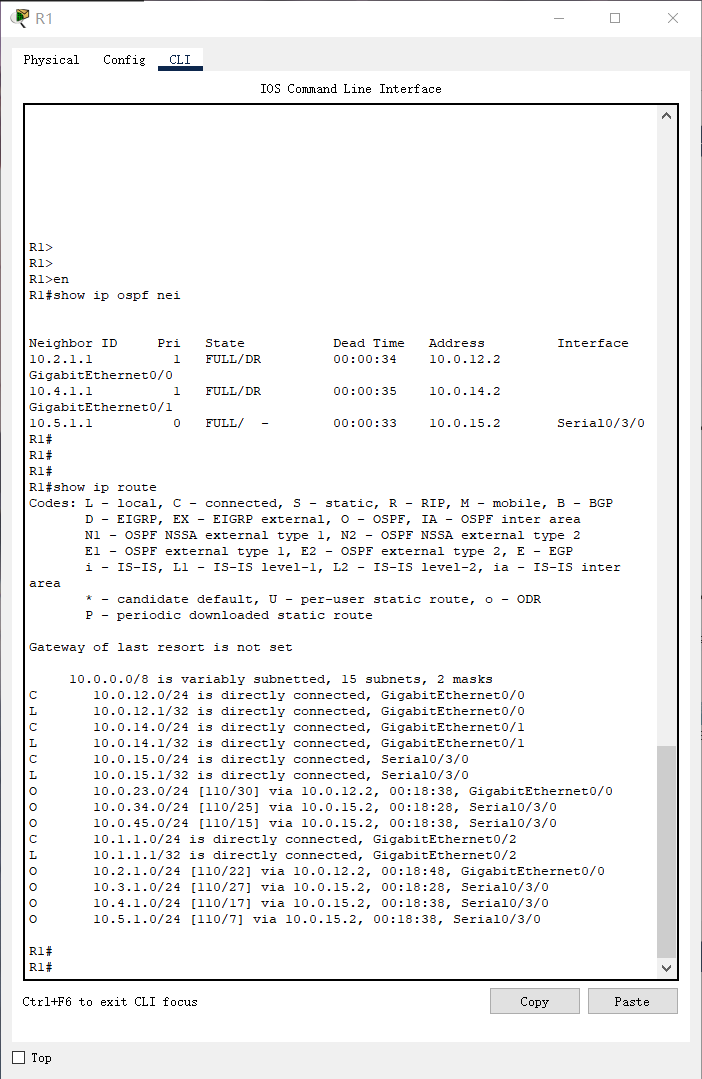

R1路由表：

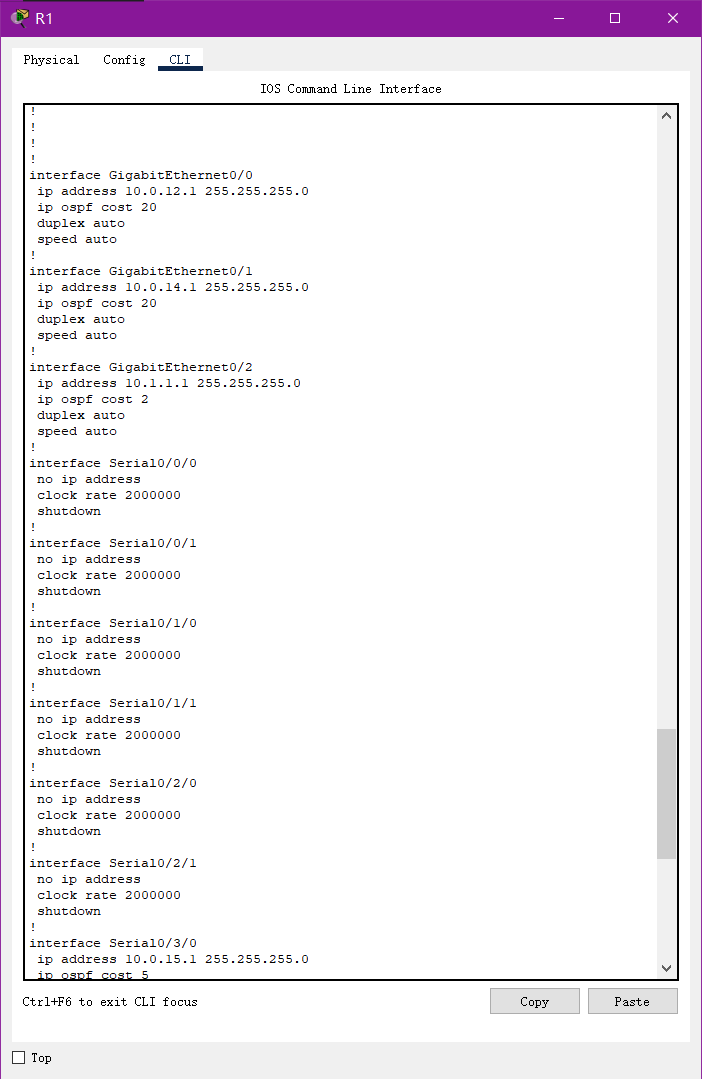

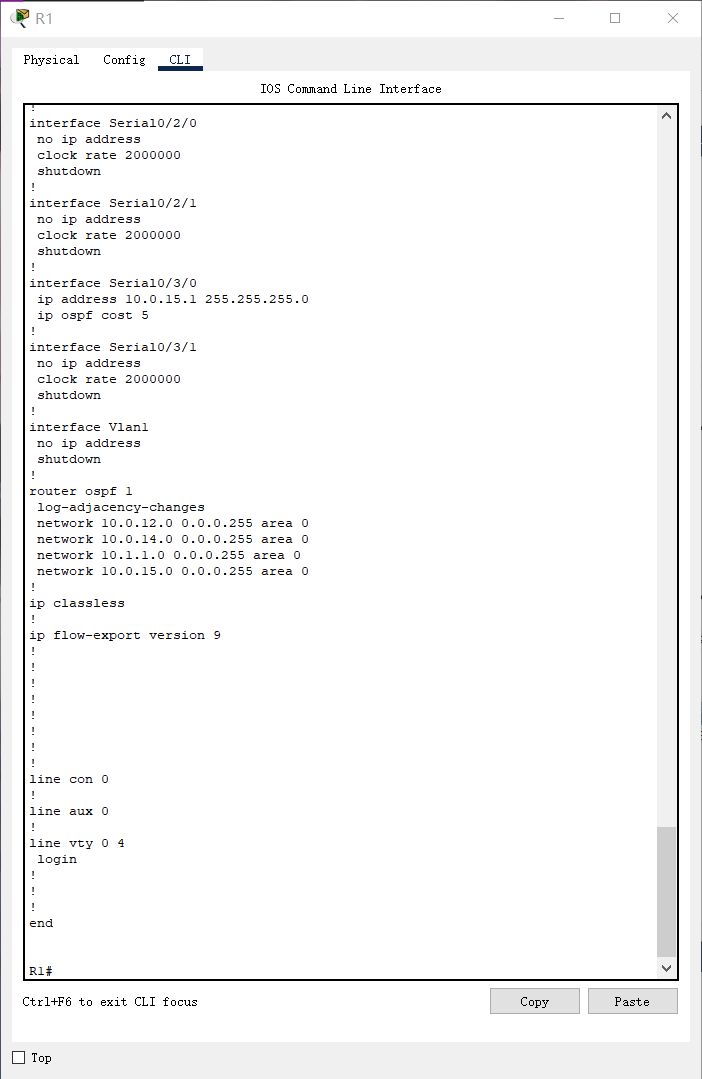

R1配置（show running）：
R2路由表：

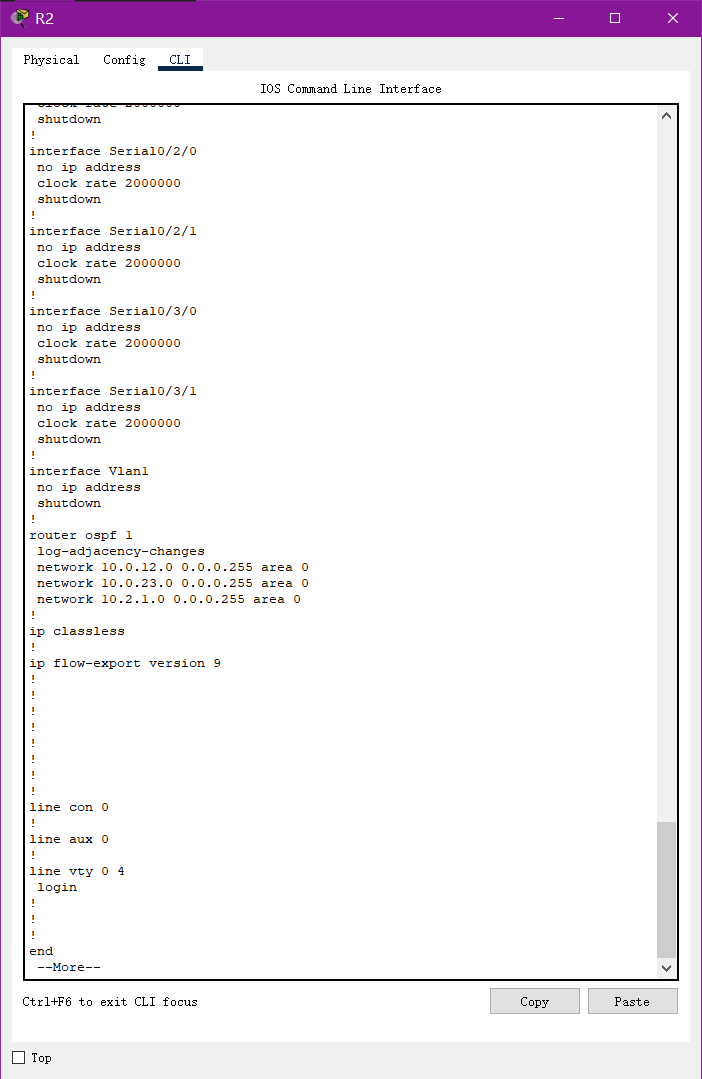

R2配置（show running）：

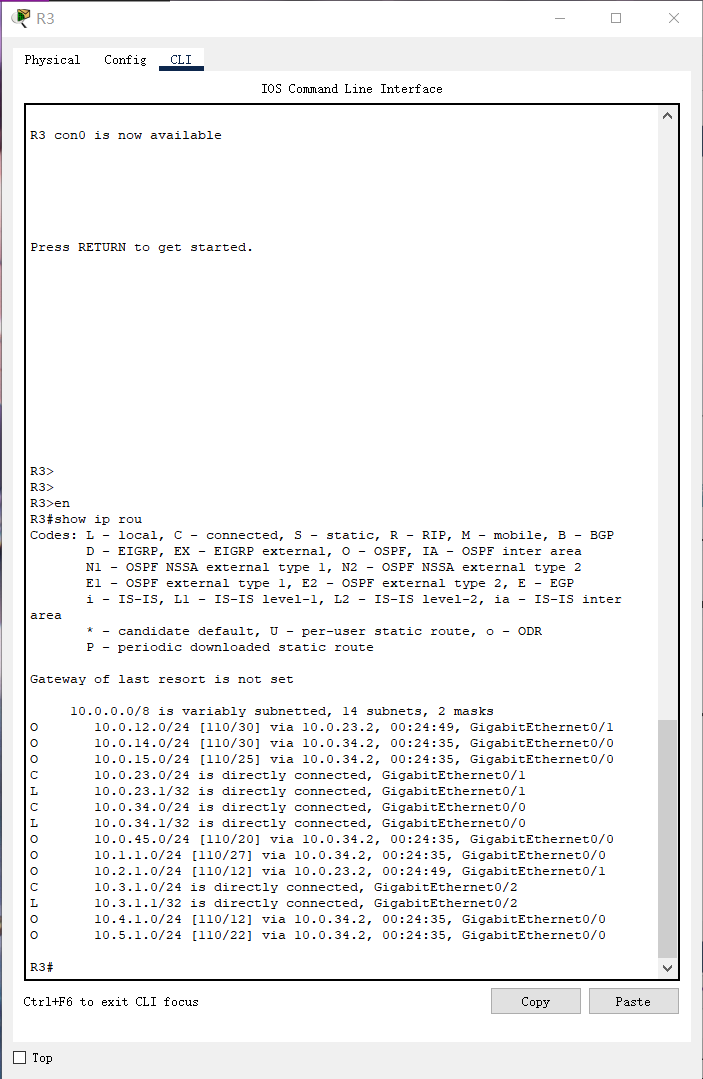

R3路由表：

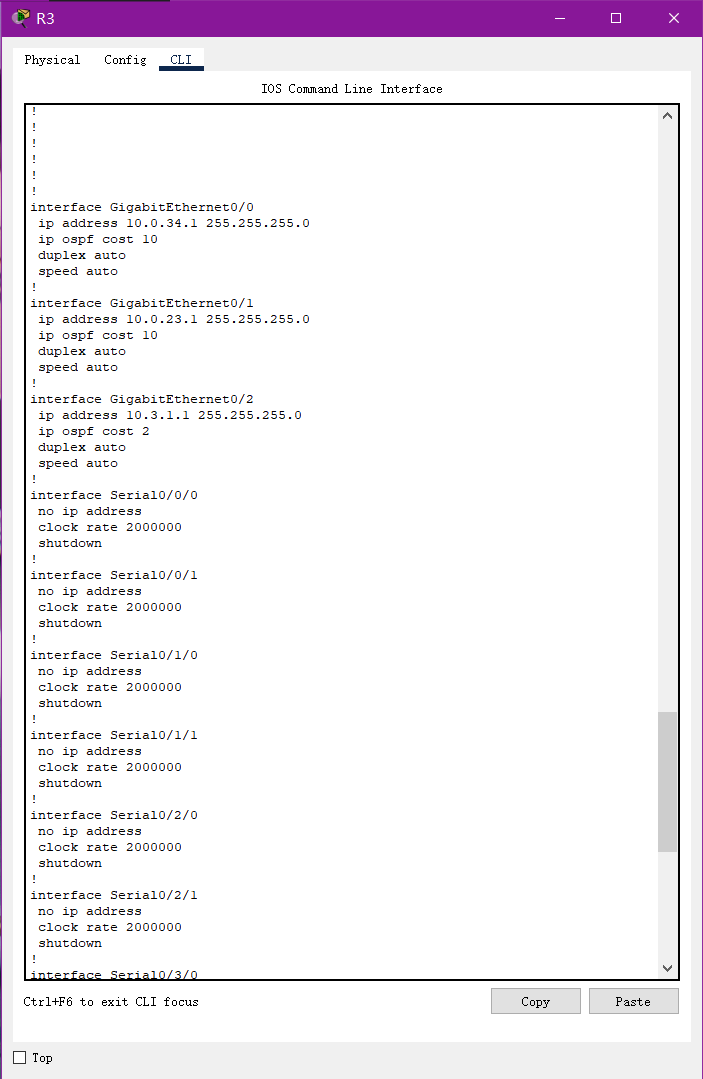

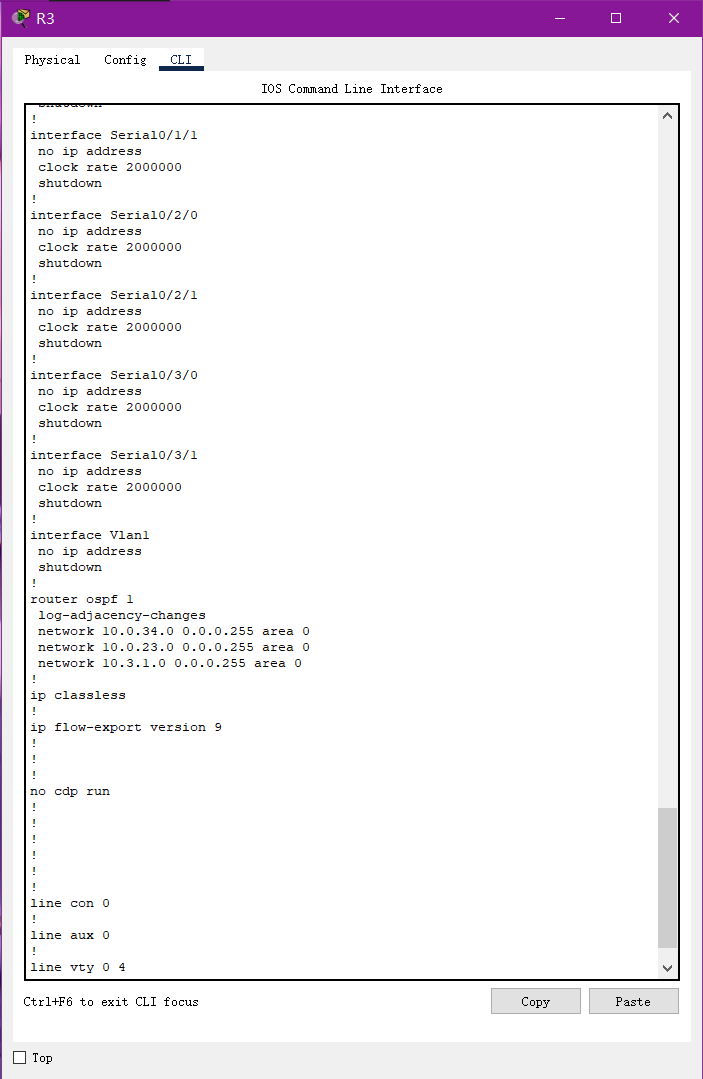

R3配置（show running）：
R4路由表：

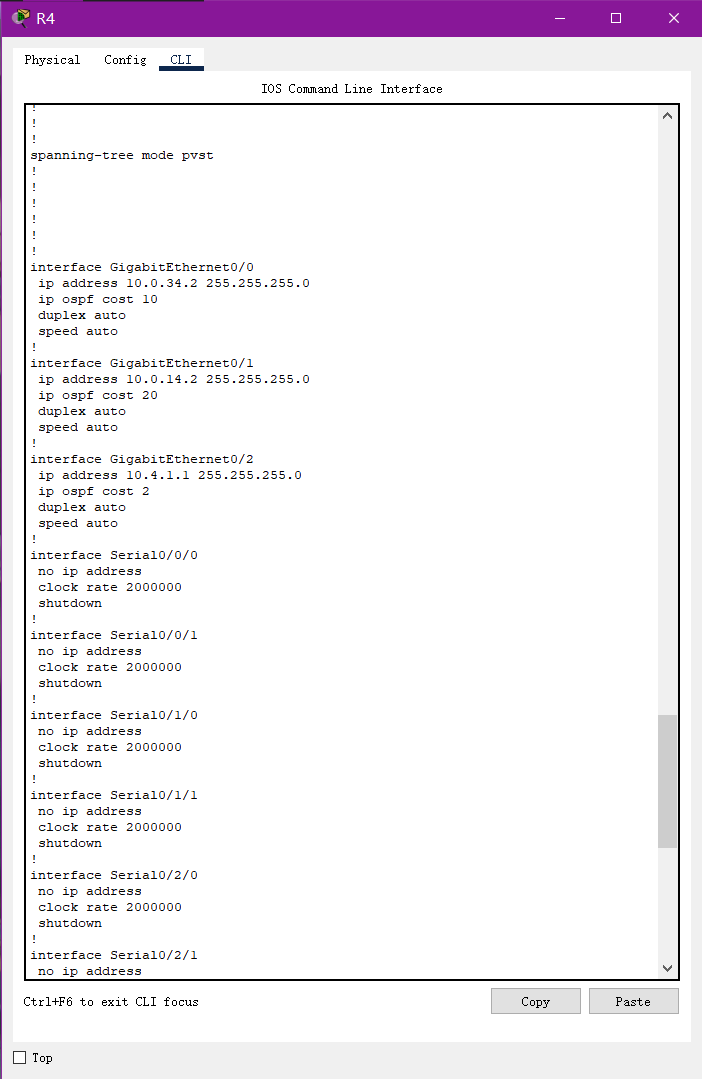

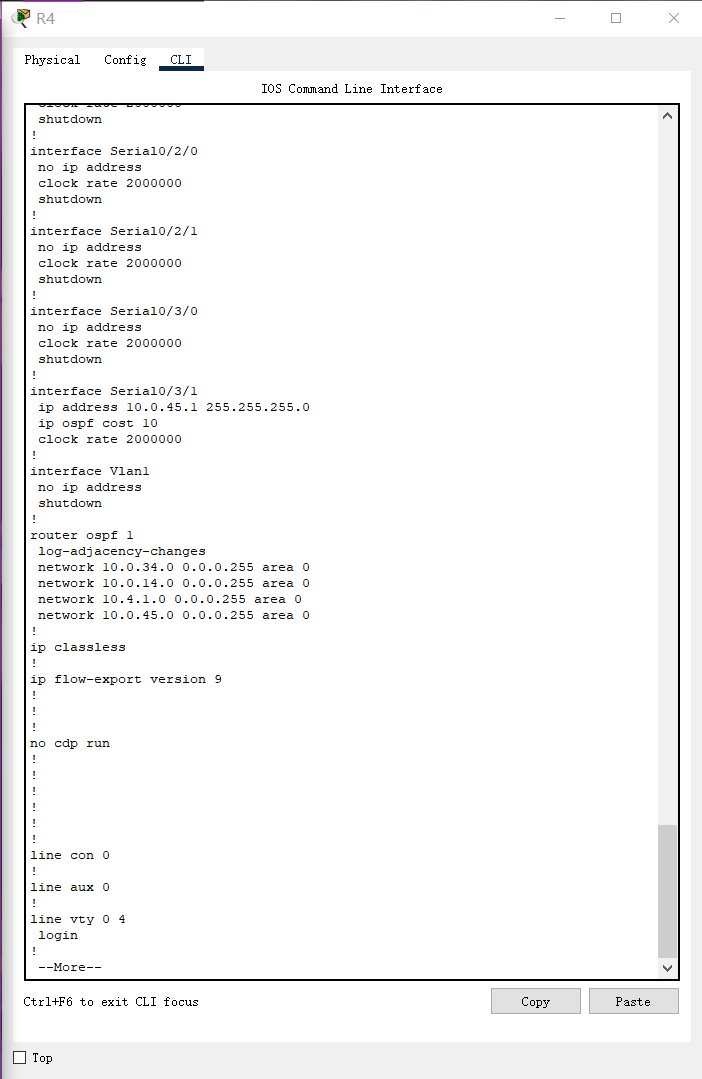

R4配置（show running）：

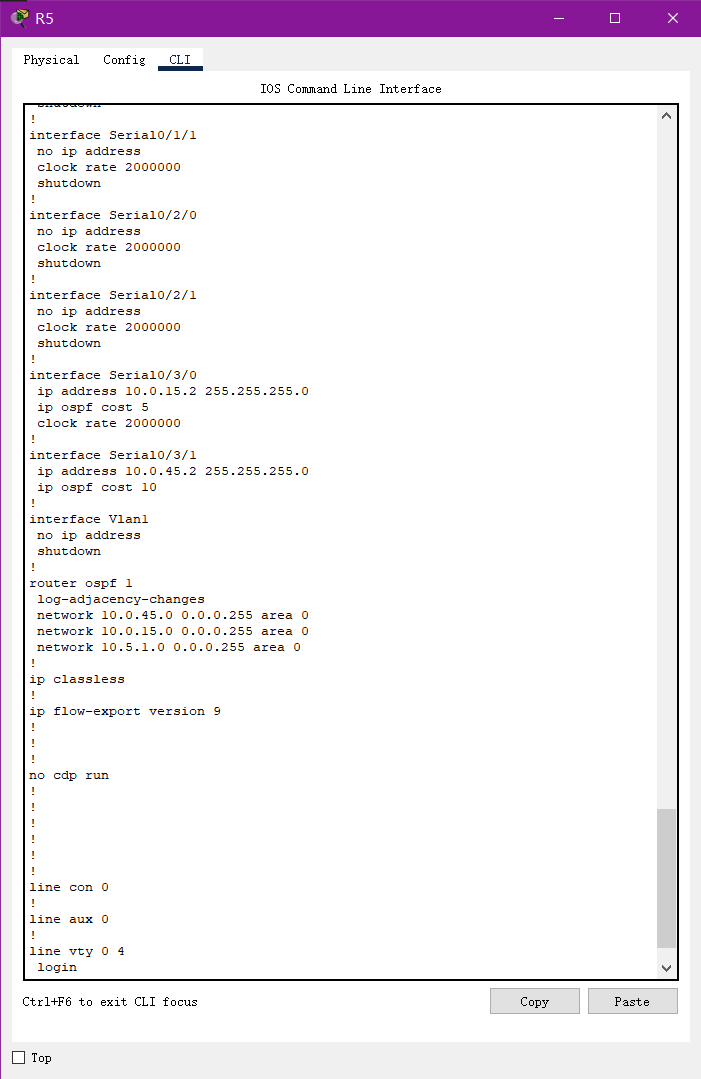

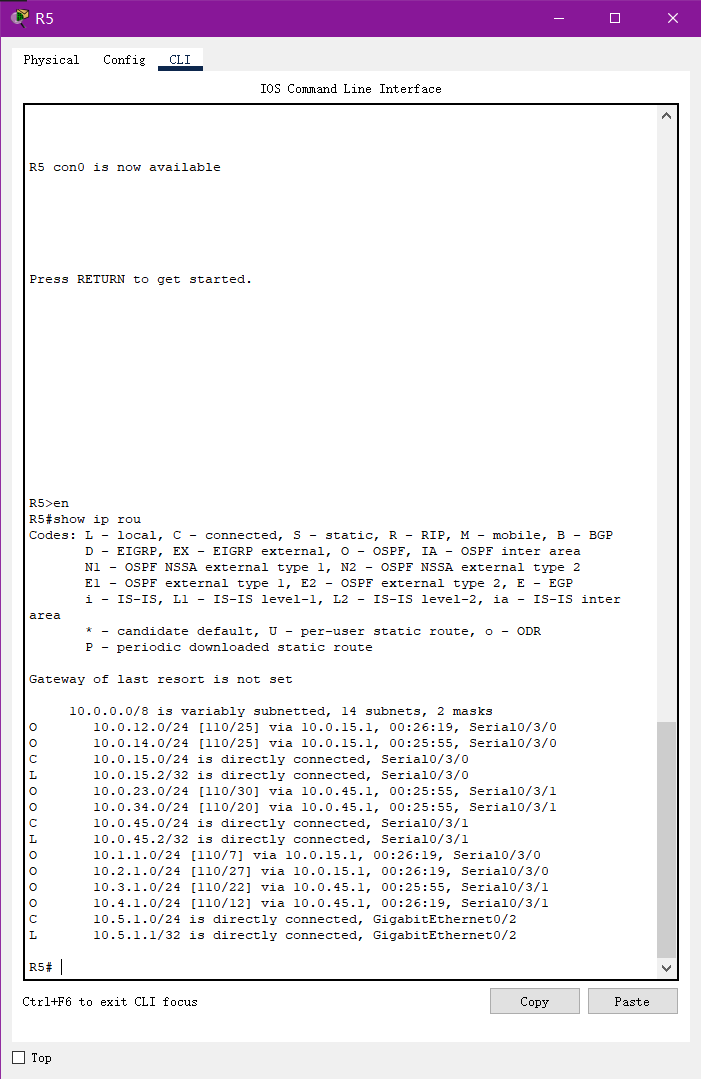

R5路由表：

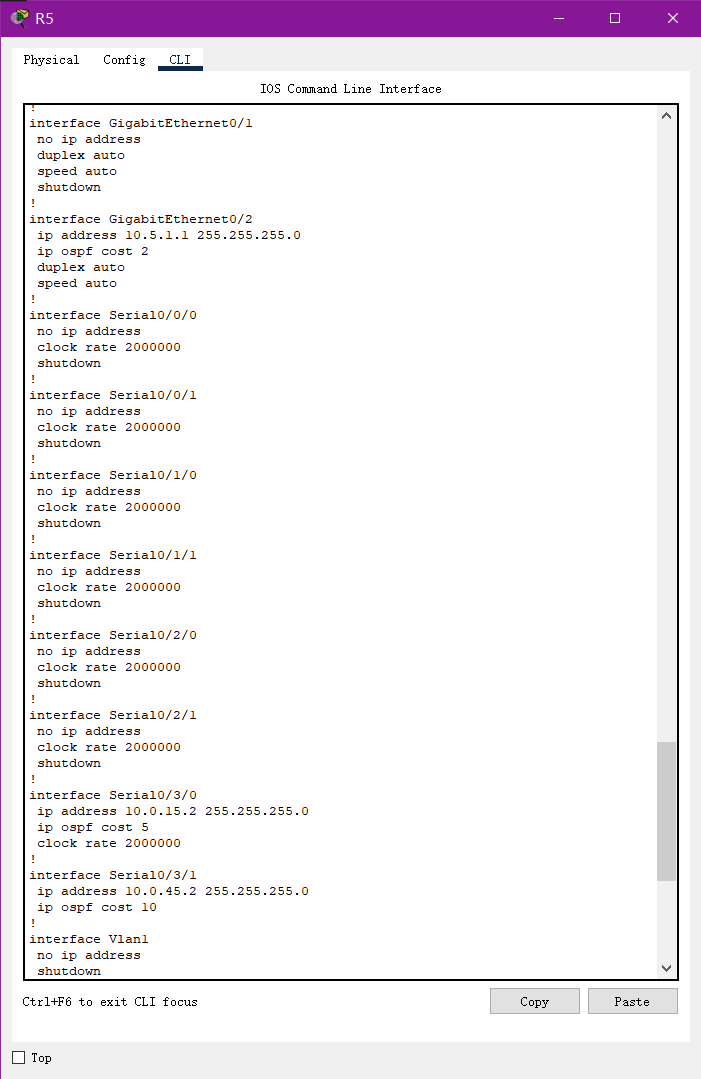

R5配置（show running）：
